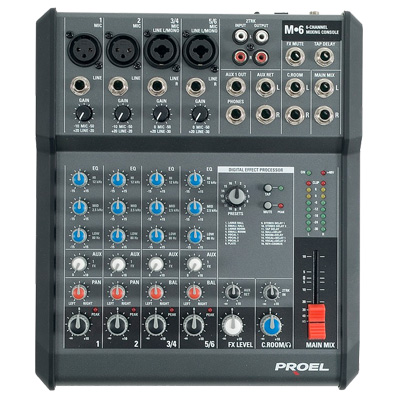

Mixer 6 Channel Proel M6

M6, the most compact model in the Series, provides the most demanding performer with an accurate and rich mix in a very portable package. Featuring 2 mono and 2 stereo channels, with a total of 4 microphone inputs, the M6 includes all functions necessary to mix a limited number of signals with utmost accuracy, from the 3-band equalizer on every channel to the 45 mm fader for the MIX control, to the 8-LED VU METER to the 16 high-quality effects.

• System type : 6 inputs mixer with digital effects
• Power Supply : 18 V – 700 mA AC adapter included
• Phantom power + 48 V : all mono input
• Input Connectors : Mic Input Balanced XLR-F – Combo Line Input Balanced TRS Jack
• Inputs : 4 MIC – 2 Line – 2 stereo line
• Input Sensitivity : Mic Input from -10 to -50 dB Line Input from +20 to -20 dB
• Input Impedance : Mic Input 2 Kohm Line Input 10 Kohm
• Output Connectors : Balanced TRS Jack and / or XLR-M Outputs C\ROOM – MAIN MIX – AUX – PHONES
• Output Levels : MAIN MIX nom. out level +4 dBu – all other outputs 0 dBu – Maximum level all outputs +22 dBu
• Headphones output impedance : min. impedance 32 ohm – max. out level (2x) 193 mW
• Distortion (THD+N) : at +4dB, 1kHz < 0,008 %
• Mono Input channel equalization : HIGH (shelving) ±15 dB @ 12KHz MID (peaking) ±15 dB @ 2.5KHz LOW (shelving) ±15 dB @ 80Hz
• Stereo Input Channel Equalization : HIGH (shelving) ±15 dB @ 12KHz MID (peaking) ±15 dB @ 2.5KHz LOW (shelving) ±15 dB @ 80Hz
• Incorporated effects : HALL, ROOM, VOCAL and PLATE reverbs STEREO and TAP DELAY REV + DELAY and REV + CHORUS 16 step PRESET selector PEAK LED MUTE and TAP DELAY switch with LED indicator and footswitch
• Frequency response : 20 Hz to 60 kHz: +0 dB/-1 dB
• Noise : unweighted < -93 dBu
• Weight : 1.4 kg (3.0870 lb)
• Dimensions (W x H x D) : 22.5 x 7 x 26.5 cm
• Notes : Carrying bag and 19″ rack adapters included
