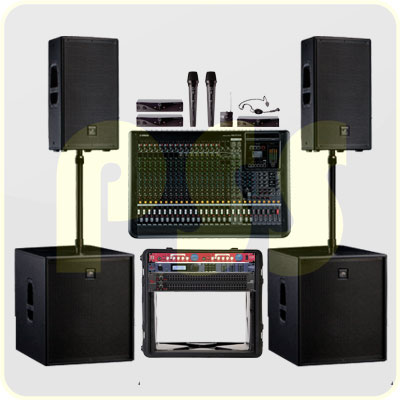

Paket Sound System Multifungsi Premium DAS Audio
( Small to Medium Setup )
Sistem dengan daya total output 4000 Watt / 133dB ( Peak ) terdiri dari :
2 Unit : Speaker Aktif DAS Audio
2 Unit : Subwoofer Aktif DAS Audio
1 Unit : Mixer Hybrid Yamaha
1 Unit : Active Speaker Management DBX
1 Unit : Equalizer 2 x 31 Band DBX
1 Unit : Tube Preamp / Optical Compressor SM Pro Audio
1 Unit : Mic Wireless Headset AKG
2 Set : Mic Wireless Handheld AKG
1 Unit : Rack Case 12U
2 Unit : Stand Speaker
1 Lot : Kabel Mic & Kabel Speaker
Solusi sistem tata suara berkualitas tinggi untuk :
– Large Meeting Room
– Medium Outdoor Event
– Small to Medium Auditorium
– Band/DJ Performance
Desain solusi sound system berestetika tinggi dan tepat guna dari kami untuk anda.
Speaker Aktif 2 Way DAS Audio Spain
| Technical Data | |
|---|---|
| Amplifier Power | 1000 W peak, 500 W continuous Class D, Biamplified |
| Frequency Range (-10 dB) | 45 Hz – 20 kHz |
| Rated Peak SPL at 1 m | 131 dB |
| Dispersion | 80º x 50º |
| Enclosure Material | Birch Plywood |
| Color/Finish | Black/ISO-Flex Paint |
| Connectors | INPUT: Female XLR LOOP THRU: Male XLR AC INPUT: powerCON |
| AC Requirements | 115 V, 3 A, 50 Hz/60 Hz 230 V, 1.5 A , 50 Hz/60 Hz |
| Dimensions (H x W x D) | 77.4 x 44.6 x 43.6 cm 30.5 x 17.6 x 17.2 in |
| Weight | 26 kg (57.2 lb) |
Subwoofer Aktif DAS Audio
| Technical Data | |
|---|---|
| Nominal LF Amplifier Power | 1000 W peak, 500 W continuous |
| Frequency Range (-10 dB) | 35 Hz -160 Hz |
| Rated Peak SPL at 1 m | 133 dB |
| Internal Crossover | Variable LPF 100 Hz-160 Hz |
| Connectors | INPUT: 2 x Female XLR LOOP THRU: 2 x Male XLR AC INPUT: powerCON |
| AC Requirements | 115 V, 3 A, 50 Hz/60 Hz 230 V, 1.5 A, 50 Hz/60 Hz |
| Enclosure Material | Birch Plywood |
| Color/Finish | Black/ISO-Flex Paint |
| Dimensions (H x W x D) | 62.4 x 54 x 65 cm 24.6 x 21.3 x 25.6 in |
| Weight | 36.5 kg (80.3 lb) |
Mixer Hybrid Yamaha
Premium Mixing Console
- 16 Mic Inputs with 48V Phantom Power and HPF per Channel
- 24 Line Inputs (16 mono and 4 stereo)
- 6 AUX Sends + 2 FX Sends
- 4 GROUP Buses + ST Bus
- 2 Matrix out
- 1 Mono out
Mikrofon Wireless Vocal AKG
Features :
- 30 Mhz selection bandwidth (depending on local frequency plans)
- 8 hours of operation with a single aa size battery
- Gain control on handheld transmitter
- Low battery indicator
- Noiseless on/off/mute switch on handheld transmitter
The Perception Wireless Vocal Set delivers brilliant sound and is surprisingly easy to use.
The SR 45 receiver provides professional XLR and ¼” jack outputs. The audio level and squelch threshold are adjustable on the receiver.
The handheld transmitter features a spring-steel wire mesh front grill to protect the dynamic transducer from the hardships of onstage use. Its cardioid polar pattern ensures maximum gain before feedback and makes your voice cut through any mix.
The system includes an SR 45 receiver, HT 45 handheld transmitter, universal power supply with US/UK/EU adapter, SA 45 stand adapter, and one AA size dry battery.
PreAmp Tabung / Optical Compressor SM Pro Audio
- Hand tested 12AX7 Tube
- Saturation: 10% @ 30 dB
- CLASS A Transformless high voltage signal path
- Input impedance: XLR: 5 kOhm, 6.3 mm of handle: 1 mega ohm
- Switchable Phantom Power
- Output impedance: XLR: 51 ohms, 6.3 mm of handle: 51 ohms
- Switchable Phase Reversal
- Level display: Volume meter -20 dBu to +3 dBu
- Adjustable optical compressor
- 110 V – 220 V external power pack
- Input gain control
- Size: 9,5″
- Switchable -20 dB Pad
- Housing: Metal
- THD + noise (unweighted): 0.05%
Equalizer 2 x 31 Band dbx
- Dual 31-band, 1/3-octave Constant Q frequency bands
- Switchable boost/cut ranges of ±6 or ±12 dB
- Front panel bypass switch
- ±12 dB input gain range
- 4-segment LED ladders for monitoring output levels
- XLR and TRS Inpts and Outputs
- Frequency Response of <10Hz to >50kHz
- Dynamic range of greater than 108dB
Active Management DBX
- Stereo Feedback Elimination with 12 feedback notch filters
- Dual 28-band Graphic EQ
- Classic dbx® Compressor
- 120A Subharmonic Synthesizer
- Stereo Multi-band Parametric EQ
- Stereo PeakPlus™ Limiters
- Pink Noise Generator
- Auto-EQ with 28-Band RTA
- JBL® and other popular powered speakers included in Setup Wizard
- dbx M2 Measurement Mic and zippered pouch included
- Front panel RTA-Mic XLR input with phantom power
- 25 User Programs / 25 Factory Programs
- 2 Channel XLR Input
- 2 Channel XLR Output
- 2 Channel XLR Sub Output
Mic Wireless Headset AKG
The Perception Wireless Sports Set package includes:
1 x SR45 Receiver
1 x PT45 Body-pack transmitter
1 x C544 L Head-worn microphone
1 x Universal power supply with US/UK/EU adapter, 1 x AA size battery
