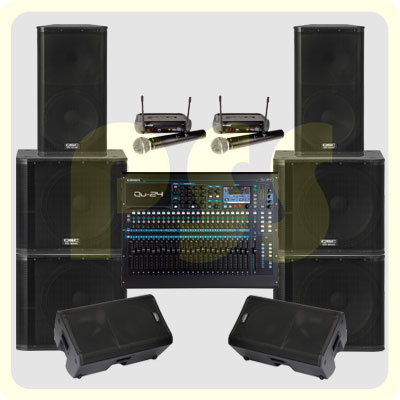

Paket Sound System Outdoor QSC

( Medium To Large Setup )

Sistem terdiri dari :
2 Unit : Speaker Aktif QSC
4 Unit : Subwoofer Aktif QSC
2 Unit : Speaker Monitor Aktif QSC
1 Unit : Mixer Digital Allen & Heath
2 Set : Mic Wireless Shure
1 Lot : Kabel Mic & Kabel Speaker
1 Lot : Instalasi & Test Comm

Solusi sistem tata suara sederhana dan berkualitas premium untuk berbagai aplikasi seperti :
– Aula / Function Hall
– Ruang Pameran
– Lapangan Outdoor

Desain solusi sound system ideal berstandar kualitas tinggi dan tepat guna dari kami untuk anda.

Speaker Aktif QSC

Features

• 15” Woofer; 1.75” diaphragm compression driver
• 60° Nominal coverage angle
• Maximum SPL 133 dB peak
• 1000 watt Class D power modules in all models (2 x 500 W continuous)
• Onboard mixer with two combo XLR and ¼” inputs, and stereo RCA inputs, (three audio input sources); two direct channel outputs and single summed balanced output
• Extensive DSP featuring DEEP™ and Intrinsic Correction™ enhances system performance
• DMT™ (Directivity Matched Transition) ensures uniform coverage across the entire sound field
• Rugged, texture-painted birch enclosures
• Four-position Mic/Line gain (full-range models)
• Tour-grade 16 gauge steel grilles
• Comfortable ergonomic handles
• 35 mm pole sockets with Tilt-Direct™
• M10 rigging points for suspended installation

Subwoofer Aktif QSC

Features

• 18” subwoofer
• Maximum SPL 135 dB peak
• 1000 watt Class D continuous power
• Extensive DSP featuring DEEP™ and Intrinsic Correction™ enhances system performance
• Rugged, texture-painted birch enclosure
• Tour-grade 16 gauge steel grilles
• Threaded pole socket
• Speaker mounting pole included (35 mm diameter, 36 inches (91 cm) long, M20 thread.)
• Comfortable ergonomic handles

Speaker Monitor QSC

Features :

• 12” Woofer; 1.75” diaphragm compression driver
• 90° Nominal coverage angle
• Maximum SPL 131 dB peak
• 1000 watt continuous Class D power modules in all models
• Onboard mixer with two combo XLR and ¼” inputs, and stereo RCA inputs, (three audio input sources); two direct channel outputs and single summed balanced output
• Extensive DSP enhances system performance
  • DMT™ (Directivity Matched Transition) provides for matched LF and HF coverage across the entire listening area, eliminating unnatural “dead” or “hot” frequency zones.
  • Intrinsic Correction™, first featured in our high-end line-array products maps 65-75 spatially-averaged measurements to IIR and FIR filters that actively adjust time, frequency and amplitude response to a maximally flat band pass target. The result is a speaker that behaves equally well across the entire sound field.
  • DEEP™ and excursion limiting allow for extended low-frequency response by actively managing low-frequency transients without degradation of the underlying signal or adjacent frequencies.
  • GuardRail™ protection protects both the amplifier module and your performance from unnatural and destructive clipping.
• Attractive and professional appearance
• Rugged ABS enclosures
• Functions as a monitor wedge
• 16 Gauge powder coated steel grille
• Comfortable ergonomic handles
• 35 mm pole sockets with Tilt-Direct™
• M10 rigging points
• Eye-bold and Yoke Mount accessories available

Mixer Digital Allen & Heath

Features:

• 24 AnalogiQ total-recall preamps integrated with DSP for optimum transparency and gain accuracy
• Ergonomic layout and workflow is comfortable, fluid, and intuitive
• Color touchscreen and dedicated data encoder give you quick and easy access to all settings
• Key processing tools are presented clearly on the SuperStrip, with one function per physical control
• 25 automated, motorized ALPS faders (24 arranged over two layers) speed up and enhance your mixing
• Four groups give you subgrouping flexibility to LR for level masters and/or processing
• Total recall lets you save and recall scenes (snapshots) at the press of a button
• Onboard studio-grade dynamics and FX algorithms derived A&H’s iLive pro touring series
• Built-in interface streams multitrack audio to/from your Mac (OSX class-compliant)
• Plug-and-play with any DAW supporting Core Audio, including Logic, Cubase, Reaper, and Pro Tools
• Qu-Drive delivers 18 channels of 48kHz/24bit recording/playback to/from your USB hard drive
• Five dedicated cores of high efficiency ARM processing provide state-of-the-art processing
• Optional Qu-Pad app frees you to tweak monitors and PA from your iPad, onstage or around the venue
• Fully compatible with A&H’s ME Personal Mixing System
• dSNAKE port lets you connect to a remote AR2412 or AR84 Stagebox via Cat 5e digital snake
• Matrix adds 2 further stereo outputs equipped with full processing to the console’s extensive I/O
• 18 gauge, cold-rolled Zintec steel frame delivers strength rigidity, and distinctive looks

Mic Wireless Shure

Features:

• 18MHz operating range at L5 band (644.650-656.662MHz)
• Audio Reference Companding for crystal-clear sound
• Easy expansion and integration into other wireless setups
• Automatic Frequency Selection
• Automatic Transmitter Setup
• 1/4 wave antennas
• XLR and 1/4″ outputs
• Cardioid dynamic microphone rejects off-axis noise
• Multi-function LED Indicator (power, lockout, mute, low battery)
•  -10dB pad
•  Two AA batteries provide eight hours of continuous use
