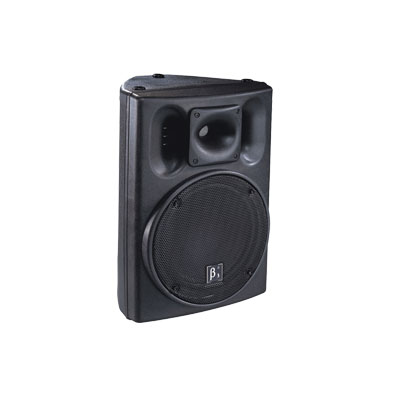

Product Description:
Portable and installed plastic loudspeakers used in applications including sound reinforcement in Front of House and Foldback applications in Houses of Worship,Events, Clubs, Rehearsal Halls etc. The U Active Series delivers extraordinary performance at unmatched value.
Key Features and Benefits:
- High output SPL and sensitivity
- 1 x 10” high power transducer with 50mm voice coil
- 1 x 1.3” diaphragm compression driver
- 90º x 60º controlled coverage pattern
- Rotatable Horn
- Built-in Bi-amp power amplifier module
- Master volume control
- Bass and Treble control
- XLR input and output connectors
- Switchable between Mic and Line input
- Heavy duty protective grill
- Injection molded
- 2 x XLR connector
- Cabinet design for FOH and Monitor use
- Suitable for use as a main system with or without sub speaker augmentation Portable system (stand), or permanent installation (wall, ceiling, under balcony)
- Arrays with all active high power U Series sub speakers for extended low frequency, high quality music reproduction
- Monitor kit – optional
Specifications
| Konstruksi |
Plastik |
| Komponen transducers |
1 x 1.3”HF+1×10”LF |
| Respon Frekuensi |
(-3dB)55Hz-18kHz |
| Rating Power |
50W HF, 100W LF (RMS) |
| Tipe Amplifikasi |
Class H |
| Maximum SPL (1W @ 1m) | 117dB(Peak) |
| Impedansi Input | Balanced 20kΩ, Unbalanced10kΩ |
| Rated Impedance | 8Ω Ohm |
| Dispersion (H x V ) | 90° x 60° |
| Connector | 2xXLR |
| Power Supply | 110V/220V |
| Packaging Dimensions | 321mm (12.6”) x 321mm (12.6”) x 464mm (18.3”) |
