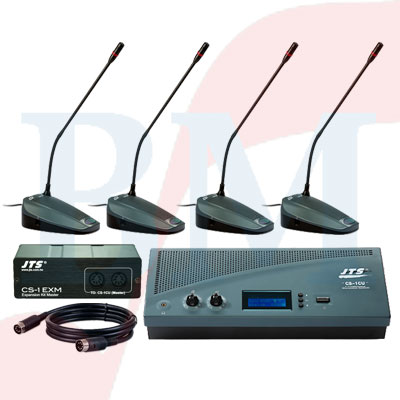

JTS I-Conference System
Solusi sistem konferensi untuk kebutuhan ruang rapat dan diskusi anda,sistem terdiri dari :
– 1 Unit : Control Unit
– 1 Unit : Chairman Unit
– 3 Unit : Delegate Unit
– 1 Unit : Master Kit
– 4 Unit : Kabel 7 Pin
|Current consumption||MAX 0.9A(100VAC) / 0.3A(240VAC)|
|DC supply to contribution units||±15V|
|Line, telephone coupler and insertion in/outputs (unbalanced)|
|Input sensitivity||-14dBV/+11dBV (nominal/maximum)|
|Output level||-14dBV/+11dBV (nominal/maximum)|
|Recorder in/output (unbalanced)|
|Input sensitivity||-20dBV/+5dBV (nominal/maximum)|
|Input impedance||47KΩ (for L & R channel)|
|External microphone input (XLR(F) balanced)|
|Phantom supply||12V+/-1V, 2*680Ω (±2%)|
|System limits Number of delegate/chairman units connected to one control unit|
|Maximum in total||50|
|Maximum per trunk output||25|
|Maximum trunk length using CS-1||standard cabling: 100m|
|Dimensions (HxWxD)||360*150*90 mm|
|Type||Back Electret Condenser|
|Frequency Response||50 ~ 18,000Hz|
|Max. SPL for 1% THD||125dB|
|Gooseneck Length||15” (400mm)|
|Dimensions (HxWxD) without mic||170*115*65 mm|
|Length of mic||400 mm|
Chairman & Delegate Unit
• Type: Back Electret Condenser
• Frequency Response: 50 to 18,000Hz
• Polar Pattern: Cardioid
• Max. SPL for 1% THD: 125dB
• Gooseneck Length: 15” (400mm)
The innovative CS-1 i-Conference Discussion System is equipped with JTS in-house made ECM capsule, intelligent automatic mixing technology and integrated acoustic and mechanical design, providing Turn-Key solution and delivering consistently natural, feedback-free audio performance with any environment. The i-Conference Discussion System is ideal for discussion and meeting with up-to 150 attendants.
A CS-1 i-Conference Discussion System consists of:
‧One Control and power supply unit (CU).
‧Maximum 150 delegate or chairman units.
‧Peripheral audio and/or telecommunication equipment.
The control unit is the center of the discussion system which controls the microphones of the chairman and delegate units as well as connects to other audio input and output. It also supplies the power for the CU itself, and up to 50 chairman and delegate units.
The delegate unit enables the attendants to participate in a discussion by speaking through a microphone, controlled by a microphone ON/OFF push-button, and listening to discussion by the internal loudspeaker and external headphone.
The chairman unit not only provides the same function as the delegate unit, but also supports the addition of a “Priority button”, that enables the chairman to control the discussion by temporary or permanently overriding and deactivating all active microphones of the delegate units.
