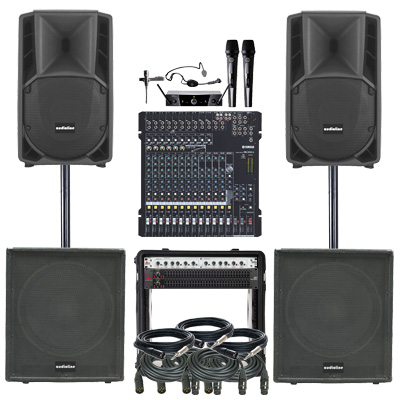

Paket Professional Audio Live
Terdiri dari :
2 Unit : Speaker Audioline MT12A
2 Unit : Subwoofer Audioline SW118A
1 Unit : Mixer 16 Channel Yamaha MG166CX
1 Set : Wireless Mic AKG WMS Mini Dual
1 Set : Wireless Clip on AKG WMS 45
2 Unit : Stand Speaker
1 Unit : Rack case 12 U
1 Unit : Crossover DBX 234xs
1 Unit : Equalizer DBX 231s
1 Lot : Kabel mic & Kabel Aux
Solusi untuk keperluan tata suara live anda, sesuai untuk :
– Wedding hall
– Acara outdoor kecil
– Ruang serbaguna
– Gym / Fitness center
– Cafe / Resto
– dll
Untuk Informasi lebih lanjut dapat menghubungi kami, Terima kasih
Mixing Console Yamaha MG166CX
| Terminal | Gain | Actual load impedance | For use with nominal | Input level | Connector | ||
|---|---|---|---|---|---|---|---|
| Sensitivity | Nominal | Max. before clip | |||||
| CH IN MIC (1-8) | -60dB | 3kΩ | 50-600Ω Mics | -80dBu | -60dBu | -40dBu | XLR-3-31 type* |
| -16dB | -36dBu | -16dBu | +4dBu | ||||
| CH IN LINE (1-8) | -34dB | 10kΩ | 600Ω Lines | -54dBu | -34dBu | -14dBu | TRS phone jack* |
| +10dB | -10dBu | +10dBu | +30dBu | ||||
| ST CH MIC IN (9/10, 11/12) | -60dB | 3kΩ | 50-600Ω Mics | -80dBu | -60dBu | -40dBu | XLR-3-31 type* |
| -16dB | -36dBu | -16dBu | -6dBu | ||||
| ST CH LINE IN (9/10, 11/12) | -34dB | 10kΩ | 600Ω Lines | -54dBu | -34dBu | -14dBu | Phone jack** |
| +10dB | -10dBu | +10dBu | +30dBu | ||||
| ST CH IN (13/14, 15/16) | – | 10kΩ | 600Ω Lines | -30dBu | -10dBu | +10dBu | Phone jack**, RCA pin jack |
| CH INSERT IN (1-8) | – | 10kΩ | 600Ω Lines | -20dBu | 0dBu | +20dBu | TRS phone jack** |
| RETURN [L,R] | – | 10kΩ | 600Ω Lines | -12dBu | +4dBu | +24dBu | Phone jack** |
| 2TR IN [L,R] | – | 10kΩ | 600Ω Lines | -26dBV | -10dBV | +10dBV | RCA pin jack** |
Wireless Microphone AKG WMS40 Mini Vocalset Dual
- The WMS 40 Mini2 Vocal Set Dual ensures brilliant sound and ease of use at an unbeatable price/performance ratio.
Unique HDAP (High Definition Audio Performance) technology ensures the best possible, most realistic sound at any time.
The SR 40 Mini2 receiver provides three status LEDs each for channels 1 and 2, indicating ON/OFF status, received signal strength (RF OK), and audio clipping (AF CLIP). The VOLUME control sets the level at the ¼” output jack.
Each receiver comes with a universal 12-V switched mode power supply with EU, UK, and US adapters. The illuminated ON/OFF button switches both channels on and off simultaneously.
The rugged HT 40 Mini handheld transmitter features an ON/OFF/MUTE switch and a sturdy wire-mesh cap protecting the cardioid dynamic microphone element. Battery life is the same legendary 30 hours off a single AA battery as for the standard WMS 40 models, reducing the need to replace batteries and thus saving real money in the long run.
The system includes an SR 40 MINI2 receiver, 2 HT 40 MINI handheld transmitters, a universal power supply with US/UK/EU adapters, and 2 AA size dry batteries.
Wireless Microphone AKG WMS45 Perception Presenterset
- 30 MHz selection bandwidth (depending on local frequency plans)
- 8 hours of operation with a single AA size battery
- Speech optimized CK 99 lavalier microphone
- Compatible with all AKG MicroMics
- Low battery indicator
- Smallest and lightest bodypack transmitter in its class
The sound of your voice perfectly reproduced by the Perception Wireless Presenter Set: the inconspicuous CK 99 lavalier microphone clips on quickly and easily, and provides optimum intelligibility for theater performances, presentations, or talk shows. Requiring little attention, it allows you to focus 100% on your presentation.
The package contains an SR 45 receiver, PT 45 bodypack transmitter, universal power supply with US/UK/EU adapter, CK 99 L lavalier microphone, and one AA size dry battery
Stereo Crossover 2/3/4 Way DBX 234xs
- TRS differentially balanced ins and outs
- Mode switches for mono 4-way or stereo 2-way/3-way operation
- Low frequency summed (subwoofer) output
- x10 range switch on both channels
- 40Hz high pass (low cut) filter both channels
- Phase reverse switch on all outputs
- Individual level controls on all band outputs
- 24dB per octave Linkwitz-Riley filters (the professional standard)
- Stereo/Mono status LEDs indicate the selected mode
- dbx® 2 year parts and labor as standard
- CSA NRTL/C approved
- CE compliant
Equalizer 2 Channel 31Band DBX 231s
- Two 31-band, 1/3-octave Constant Q frequency bands
- Switchable boost/cut ranges of ±6 or ±12 dB
- 12dB per octave 50Hz low-cut filter
- Front panel bypass switch
- ±12 dB input gain range
- 4-segment LED ladders for monitoring output levels
- XLR and TRS Inpts and Outputs
- Internal Toroidal Transformer
- Frequency Repsonse of <10Hz to >50kHz
- Dynamic range of greater than 108dB
